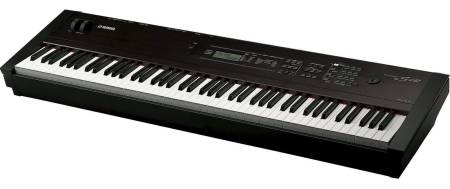

YAMAHA S08
S08 发布于 2002 年，是 S03 的扩展型号。
参数表
| 键盘 | 88键（平衡击弦效果键盘) | ||
| 音源 (音色发生器) | AWM2 | ||
| 复音数 | 64 个音符 | ||
| 多声部音色(MULTI TIMBRE) | 16 | ||
| 波形 | 521 个波形文件 | ||
| 音色(VOICE) | 标准音色 | Preset | 128 |
| User | 128 | ||
| GM2/XG | 493 | ||
| 鼓音色 | User | 2 | |
| GM2/XG | 29 ( 包括 8 个 原始音色 ) | ||
| 多音色(MULTI) | User | 32 | |
| 效果器 | 混响(Reverb) | 17 | |
| 合唱(Chorus) | 17 | ||
| 变异(Variation) | 54 | ||
| 音序播放 | SMF Format 0 (Direct Play only) | ||
| 外部存储器 | SmartMedia™ (3.3V) * 大有128MB 空间可被使用。 |
||
| 操控件 | STANDBY/ON, VOLUME, Pitch Bend wheel, Modulation wheel, VOICE, MULTI, SEQ PLAY, UTILITY, CONTROLLER, CARD, EDIT/COMPARE, JOB, STORE (PLAY/STOP), EXIT, E/F, ▲ / ▼, PART (ELEMENT/KEY) –/+, MUTE, INC/YES, DEC/NO, PRESET, USER, GM2/XG, CATEGORY SEARCH, Numeric Keypad, ENTER, Data dial |
||
| 接口 & 端子 | PHONES (Stereo Phone), OUTPUT (Phone): L (MONO)/R, DC IN, FOOT CONTROLLER, FOOT SWITCH, MIDI IN/OUT/THRU, USB, Card slot | ||
| 显示 | LCD (背光) | ||
| 电源供应 | Yamaha 交流变压器 PA-5C ( 附带 ) 您所在区域可能没有 . 请向您的 Yamaha 经销商索取。 |
||
| 耗电量 | 8W | ||
| 大输出电平 | 输出 +9±2dBm (10 k¾), 耳机 : +0±2dBm (33 ¾) | ||
| 外形尺寸 | 1323 ( 长 ) x 389 ( 宽 ) x 159 ( 高 ) mm | ||
| 重量 | 19.8kg | ||
示范曲
| 乐曲示范 | |
|---|---|
| 01-Kiss My Jazz | |
| 02-Digi Groove | |
| 03-Play Rock | |
| 音色示范 | |
| 04-Pianoforte Stage Piano 1 | |
| 05-Pianoforte Mid Road | |
| 06-Pianoforte Full Tine | |
| 07-Organ Cool! | |
| 08-Organ Rock | |
| 09-Organ Warm | |
| 10-Guitar Nylon | |
| 11-Guitar Dist | |
| 12-Bass VelSlap | |
| 13-Bass MgFunk | |
| 14-Strings Rich St | |
| 15-Strings Cello Solo | |
| 16-Brass Brite Sec | |
| 17-Brass Pure Synth | |
| 18-Reed Natural Harmonica | |
| 19-Lead Sp Sync | |
| 20-Pad Outer Space | |
| 21-Pad Obr Drone | |
| 22-Synth Comp SynVcCmp | |
| 23-Chromatic Percussion St Bell | |
| 24-Drums R&B Kit | |
| 25-Sound Effects Big Hit |
